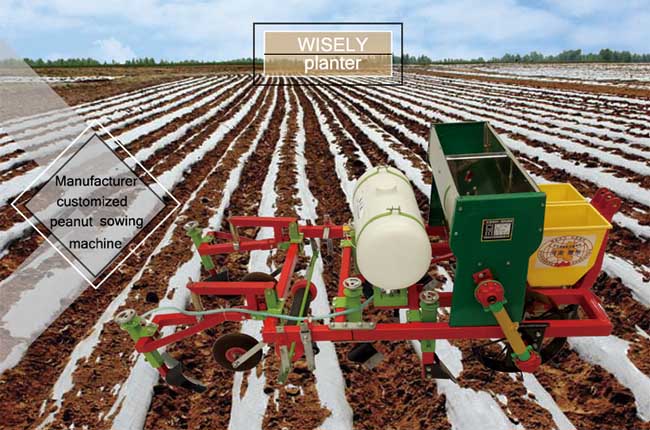

Groundnut Peanut Planting Machine With Fertilizing Spraying Film
Mulching
Product performance:
The peanut planter series, introducing the advanced technology for
producing peanut planter abroad,
match four~wheel tractor and combine ditch, fertilizing, sowing,
casing soil, may complete fertilizing
and sowing simultaneously. In the area planted to ridging, can
according to the needs of farmers
grow ridging, according to size, can the power tractor combination
of group, the production efficiency
is more than 5~8 acres per hour, with compact structure, mobility,
rational layout, smooth, maintenance
of simple features, and according to different regional
agricultural planting requirements, adjust depth,
spaced and planting distance.
Specification:
| Dimension(L*W*H) | 2100*1100*800mm |
| Weight | 150kg |
| Matched power | >15HP diesel (diesel engine) |
| Matched type | rear suspension traction |
| Row spacing | 120/150/180/210/240/270mm (adjustable six-speed gearbox) |
| Productivity | 0.33-0.50 Acre/h |
| Ridge width | 500-700mm |
| Transmission type | drive shaft drive |
| Seed depth | 80-150mm |
| Fertilizer barrel volume | 80kg |
| Fertilizer depth | 100-200mm |
| Film mulching width | 600-1000mm(adjustable) |
| Pesticides barrel volume | 100kg |
matters need attention:
1. Wash the fertilizer box , fertilizer feeders and conveying pipe
with clear water, wash and dry
medicine barrel in the sun to prevent the machine being corroded.
2. Clean up all seeds at the seeding apparatus.
3. Check the bearing and universal joint, and add lubricant to the
tra nsmission parts after the planting season.
4. Puts machine in the well-ventilated shade, pad it up by bricks
or other things to keep thedigging
shovel off the ground.
